Spray Booth Filters Designed to Improve Performance

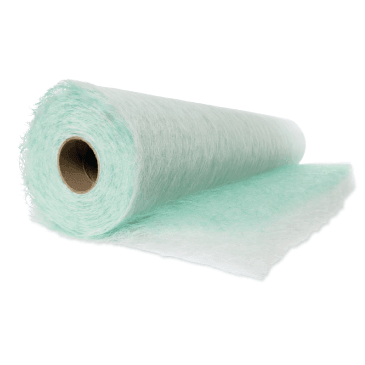

Glass-fibre Spray booth Filters (Extract Filter)

A glass-fibre filter with high dust holding capacity. Ideal for spray booth extract chests and floors.

• Also known as ‘paint arrestor’ or ‘paint stop’
• Various forms available – rolls and cut pads
• Many sizes available

DuplexPro®

The 2-in-1 DuplexPro^® Synthetic Extract Filter eliminates the need for two separate filters in the extract system. Manufactured using recycled synthetic fibres, DuplexPro is specifically designed to optimise air flow, whilst maintaining paint holding capacity.

• One EPA compliant filter that replaces the traditional glass fibre and synthetic combination, whilst maintaining filter efficiency.
• DuplexPro® lasts longer than traditional glass/synthetic combination filters.
• Lab tests have shown that DuplexPro® holds more particulate than traditional glass-fibre filters.
• Made from recycled plastics.
• DuplexPro® is an environmentally sustainable product made without harsh chemical processes.
• Free from glass fibres means it is safer to handle, reducing irritation, and does not require additional PPE to be worn during installation.
• Installing DuplexPro® saves time when replacing filters.
• Zero shedding with DuplexPro reduces paint contamination and cabin debris.

Visit our dedicated page for more information on DuplexPro®.

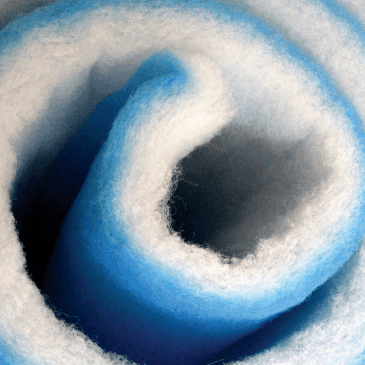

Synthetic filters

A synthetic media filter designed to suit pre-filtration applications for every type of spray booth.

• Various forms available – pads, rolls, pleated panels and bags
• Grades G2, G3 and G4 available (as per EN 779-2012)
• Available in white or blue/white.

Bag filters

Bag Filters are used in HVAC systems for industrial and commercial applications, as well as for residential use to improve indoor air quality and comfort. The filters in the supply air are used as first and second filter stages, either as complete filtration solutions for these applications or as pre-filters for cleanroom process applications.

The filters are also used in the exhaust air or in recirculation systems to protect the air handling units. Bag Filters have a significantly higher dust holding capacity and longer lifetimes than other filters.

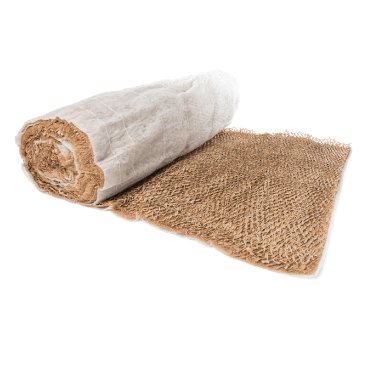

Kraft Layered paper filters

These layered kraft paper filters use the baffle principle collection. Expanded layers with different size slits are sewn together. Various layer combinations are designed to specifically suit the type of product requiring filtration. Various layer combinations/depths available. Flame resistant with long service life. Available in mats and rolls.

• Suitable for all solvents and water based paints
• Various layer combinations/depths available
• Flame resistant with long service life
• Available in mats and rolls

Ceiling filters

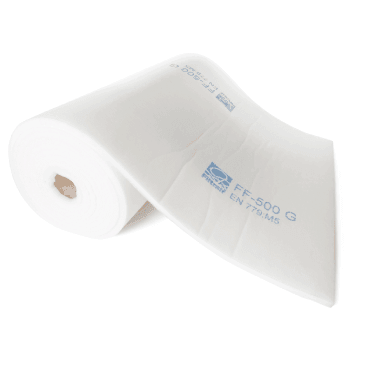

A synthetic, fibre based ceiling filter to provide uniform, high quality spray booth filtration.

• 100% saturation with a special adhesive “tackifier” prevents migration of particles down to 5 microns
• Grades M5 and M6 available (as per EN 779-2012)
• Approved by major automotive manufacturers
• Variety of dimensions and quality available

For more information on Spray Booth Ceiling Filters, visit our dedicated page.

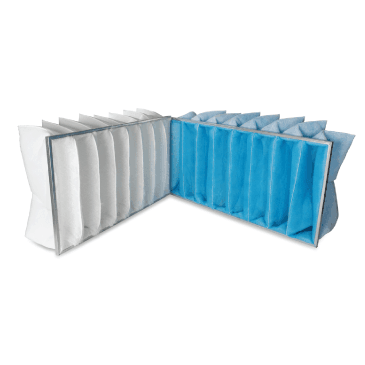

Input & Extract Bag Spray booth Filters (Intake Filter)

A deep pocket bag filter to provide high dust holding capabilities. Suitable for all makes and models of spray booths.

• Various pocket options available – from 1 to 12 pockets
• Assembled with metal frames for further rigidity
• Available as a non-frame option

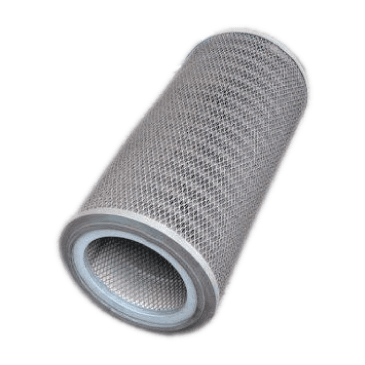

Dust Collector For Spraybooths

Replacement filters for dust extraction systems. Designed to improve performance and reduce energy costs.

• Reduces maintenance costs
• Cartridges and bags available
• Various media available
